Hydraulic lifting platform
The hydraulic lifting platform is mainly composed of three parts, respectively:
1. Mechanical mechanism
2. Hydraulic system
3. Electrical system
Description
Mechanical mechanism: The mechanical mechanism is divided into four parts, the base frame, the car platform, the protective net and the hydraulic actuator (cylinder).
Hydraulic system: The hydraulic system is driven by the motor gear pump to absorb oil, after the auxiliary hydraulic components to push the hydraulic actuator (cylinder) up and down action and then to the car platform, down.
Electrical system: The electrical system is used to start the motor and drive the lowering solenoid valve, so as to achieve the purpose of the car platform up and down.
| Model number | Rated load（KG) | Lifting stroke（mm) | Lower and higher(mm) | Table size(mm) | Lifting time | Motor power(kw) |
| SJG1-4 | 1000 | 4000 | 85 | 2000x2000 | 5.5m/min | 2.2 |
| SJG1-8 | 1000 | 8000 | 85 | 2000x2000 | 5.5m/min | 2.2 |
| SJG2-4 | 2000 | 4000 | 85 | 2000x2000 | 5.5m/min | 3.7 |
| SJG2-8 | 2000 | 8000 | 85 | 2000x2000 | 5.5m/min | 3.7 |
| SJG3-4 | 3000 | 4000 | 105 | 2000x2000 | 5.5m/min | 5.5 |
| SJG3-8 | 3000 | 8000 | 105 | 2000x2000 | 5.5m/min | 5.5 |
| SJG4-4 | 4000 | 4000 | 105 | 2000x2000 | 5.5m/min | 7.5 |
| SJG4-8 | 4000 | 8000 | 105 | 2000x2000 | 5.5m/min | 7.5 |
Product parameter
Note: The above parameters are for reference only, the specific parameters can be customized according to customer needs.
Product characteristics

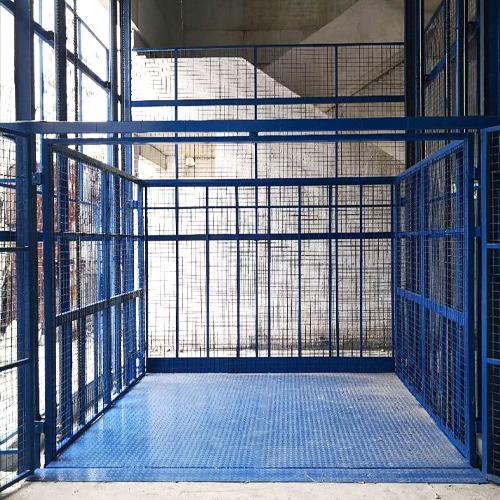

Generally carrying 300-5000KG, the whole machine structure is stable, the car adopts the elevator box structure, to solve the problem of partial load of the old lifting platform, the car is fixed around eight points, each point uses three wheels positioning with 24 guide wheels tightly stuck track, so that the goods regardless of the corner of the entire car will not exist due to partial load and affect the service life of the cylinder. The top of the cylinder adopts a two-stage guide to fix the cylinder to extend steadily and straight up, so the service life of the oil seal is greatly guaranteed.

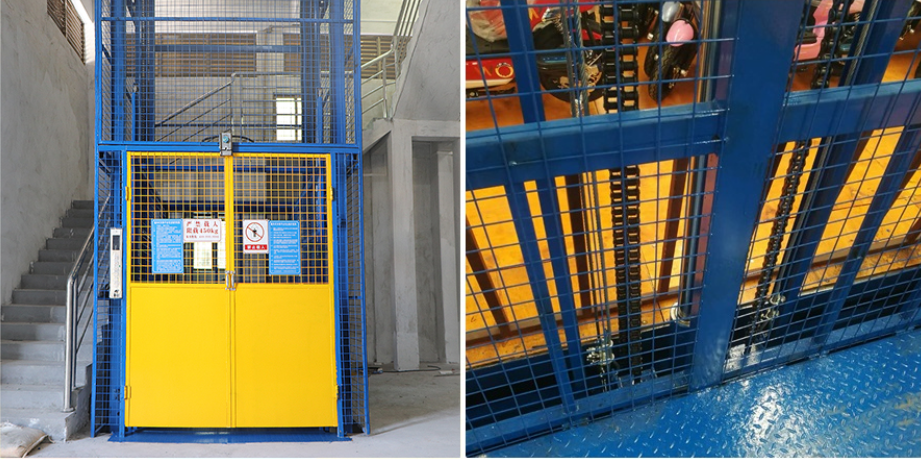

Product display
Factory direct sales, quality assurance
Product characteristics of elevator

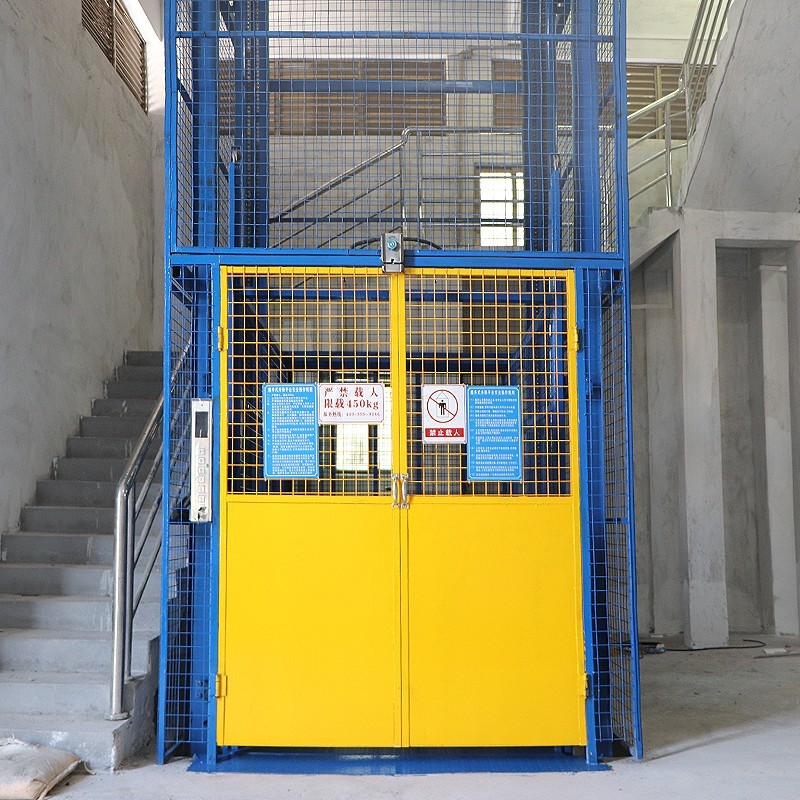

External door diversification for customers to choose
1. With gated interlock double door, low price, high configuration, high security performance
2. Automatic sliding door, safe and convenient
Time saves effort, lift rises to two
The first floor door automatically drops to block the floor
Purchase entrance, second floor door automatically hit
Open. As the elevator descends to the first floor
Second floor door shuts. First floor door
Automatic rise opens.
3. Counterweight door, easy to lift up, does not occupy the use area of the factory
4.Automatic elevator door, high-end
atmosphere
Product advantage

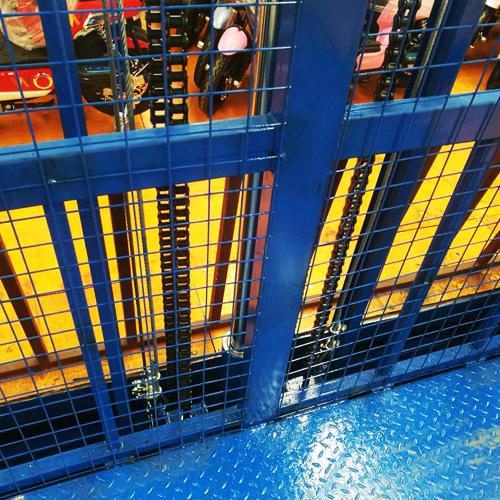

The structure of the car frame body is adopted, with 24
The pulley jammed the track, leaving its cargo in place
Which corner will not exist partial load.
The track is made of I-beams and fixed with three wheels
Clamp the rails tightly at each corner of the car
Tao, don't leave a gap.

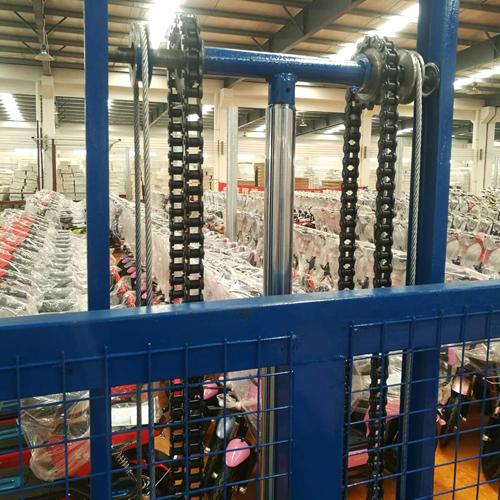

Do two level guidance on both sides of the top of the cylinder, pull the cylinder to rise smoothly, there will be no shaking of the cylinder phenomenon, enhance the service life of the oil seal in the cylinder.
Lorem ipsum dolor sit amet, consectetur
adipiscing elit. Ut elit tellus, luctus nec
ullamcorper mattis, pulvinar dapibus leo.
Intelligent electronic control, plc program system, optional explosion-proof type
Beautiful appearance, safe and reliable
Lift product function
Lifting platform, also known as guideway lifting platform, is a non-shear fork hydraulic lifting mechanical equipment, used for cargo transportation between two and three floors of industrial plants, restaurants, restaurants, the minimum height is about 100mm, especially suitable for workplaces that can not excavate pits, and do not need the upper ceiling. Diversified forms (lifting cylinder has a single, double two kinds, rail column has two and four forms). The equipment runs smoothly, the operation is simple and reliable, and the cargo transmission is economical and convenient
With the prosperity of industry and commerce, logistics technology is increasingly showing its importance. So as to meet different needs, the types of elevator are also increasing, and its functions are becoming more and more perfect. Elevator application of advanced elevator technology production of elevator elevator has reached dozens of kinds, whether it is from the load weight of 300-5000 kg, whether it is traction or hydraulic type, have a high degree of safety and reliability, and easy to use. The series of cargo elevators can provide you with safe, smooth and efficient service in different places such as factories, warehouses, shopping centers, supermarkets, airports, stations and so on.
01. Only need to dig a pit of more than ten centimeters to ensure the convenience of goods in and out, and facilitate the installation and use of equipment
02. Hydraulic cylinder, special heavy chain, steel wire rope, multiple protection to ensure the safety of equipment operation and use.
03. It can be used directly for slope treatment without pit, which greatly facilitates the installation and use of equipment space and occasions.
Factory direct sales, quality assurance
Elevator engineering case
01. Indoor installation examples
02. Outdoor installation examples
